2D Two Dimensional Powder Mixer Machine
Product Overview
Definition
The Sinoped 2D Two Dimensional Powder Mixer Machine is an industrial powder blending equipment designed for uniform mixing of powders, granules, and solid materials in pharmaceutical, chemical, food, cosmetic, agricultural, and industrial manufacturing applications.
Also known as a Two Dimensional Motion Powder Mixer, 2D Powder Mixing Equipment, or Multi-directional Rotating Drum Mixer, this equipment uses a unique combination of rotary and swinging movements to improve material circulation and mixing efficiency.
As a professional powder processing equipment manufacturer, Sinoped develops and supplies customized 2D powder mixer machines for customers requiring reliable powder blending solutions, GMP-oriented production environments, and flexible production capacity options.
The Sinoped SYH series 2D powder mixer is designed with a compact structure, stable operation, easy cleaning characteristics, and adaptable configurations for different industrial requirements.
How Sinoped 2D Powder Mixer Machine Works
The working principle of the Sinoped Two Dimensional Powder Mixer is based on the combination of rotation and swinging motion.
During operation, the mixing cylinder rotates around its horizontal axis while simultaneously performing a swinging movement. This two-dimensional movement allows the powder materials inside the container to continuously move vertically and horizontally, creating efficient convection, diffusion, and mixing effects.
Compared with conventional single-direction rotary mixers, the Sinoped 2D powder mixer creates a more complex material movement path, helping reduce material accumulation and improve mixing consistency.
For pharmaceutical and high-cleanliness applications, Sinoped can configure the powder mixer with vacuum feeding systems. The closed feeding process helps reduce material contamination risks and supports GMP production requirements.

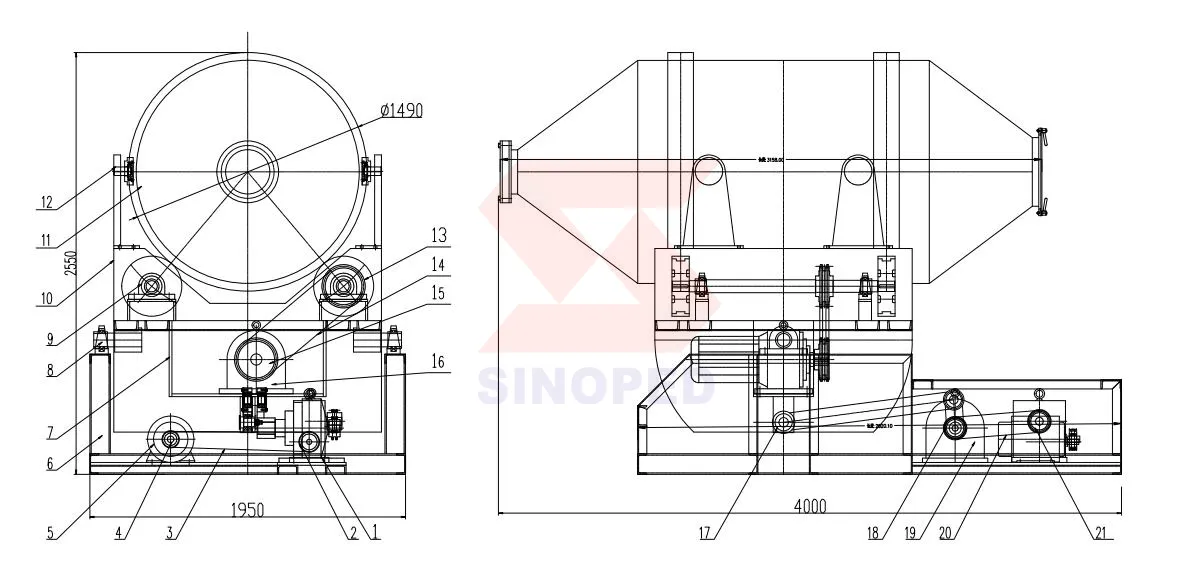

Specifications of Sinoped SYH Series 2D Powder Mixer
| Model | SYH600 | SYH1000 | SYH2000 | SYH4000 | SYH6000 | SYH8000 | SYH10000/20000 |
| Max Working Volume | 360L | 600L | 1200L | 2400L | 3600L | 48000L | 6000L~12000L |
| Net Weight | 1150KG | 1700KG | 2600KG | 4100KG | 6100KG | 7900KG | 10000/18000KG |
| Rotation Speed | 16/9 RPM | 8/6 RPM | 8.5/5 RPM | 7.8/5 RPM | 7/4 RPM | 6.7/4.5 RPM | 6/4.2~5/2.5 RPM |
| Motor Power | 2.2 kW | 3 kW | 5.2 kW | 9.5 kW | 13 kW | 13 kW | 18.5/30 kW |
| Mixing Time | 0–99 min | 0–99 min | 0–99 min | 0–99 min | 0–99 min | 0–99 min | 0–99 min |
| Overall Size | 1.145×1.105×1.75m | — | — | — | — | — | 3.295×5.155×5.4m |
Sinoped provides customized powder mixer solutions including working volume, material selection, feeding system, and equipment configuration according to customer production requirements.
How to Select the Right Sinoped 2D Powder Mixer
Selecting a suitable Sinoped industrial powder mixer machine mainly depends on production capacity, material characteristics, hygiene requirements, and final application.
For pharmaceutical manufacturers, the priority is usually GMP compatibility, easy cleaning, and controlled material handling. For chemical and industrial applications, customers may focus more on processing volume, mixing efficiency, and equipment durability.
The SYH series from Sinoped covers different production scales, from small-batch powder mixing requirements to large industrial powder processing systems. Customers can select the appropriate model according to working volume, powder density, production cycle, and automation requirements.
Sinoped 2D Powder Mixer Compared with Conventional Powder Mixing Equipment
| Item | Sinoped 2D Powder Mixer | Traditional Powder Mixer |
| Mixing Movement | Rotary and swinging two-dimensional motion | Mainly single-direction rotation |
| Material Flow | Multi-directional circulation | Limited movement path |
| Mixing Performance | Suitable for uniform powder blending | Depends on mixer structure |
| Cleaning Design | Reduced dead zones, easier cleaning | Different structures require different cleaning methods |
| GMP Application | Suitable for pharmaceutical and hygiene-sensitive production | Depends on equipment design |
| Feeding Options | Vacuum feeding integration available | Usually standard feeding method |
| Space Requirement | Compact structure | Usually larger installation space |
The Sinoped 2D powder mixer is commonly selected when manufacturers require efficient powder blending with flexible configuration and easier production management.
Applications of Sinoped 2D Powder Mixing Equipment
The Sinoped Two Dimensional Powder Mixer Machine is widely applied in industries where powder uniformity and material consistency are important.
In the pharmaceutical industry, Sinoped powder mixers are used for blending drug powders, excipients, and intermediate materials to achieve consistent ingredient distribution.
In chemical manufacturing, the equipment is suitable for mixing powdered additives, pigments, coatings, and chemical raw materials.
For food processing, Sinoped 2D powder mixers can handle materials such as flour, milk powder, seasoning powders, and nutritional ingredients.
The equipment is also used in cosmetic powder production, pesticide formulation, and metallurgical material preparation where stable powder mixing performance is required.
Installation and Maintenance of Sinoped Powder Mixer Machine
Proper installation and regular maintenance help ensure stable operation of the Sinoped 2D powder mixer.
Before commissioning, users should confirm that the foundation is stable, electrical connections meet requirements, and the rotation direction is correct.
During operation, regular inspection of the motor, reducer, sealing components, and mechanical transmission system is recommended. The mixing chamber should be cleaned after production to maintain hygiene standards and prevent material cross-contamination.
Because Sinoped 2D powder mixers are designed with a relatively simple transmission structure and optimized internal design, daily operation and maintenance procedures are convenient for industrial users.
Industry Standards and Manufacturing Requirements
Sinoped designs and manufactures powder mixing equipment according to international industrial requirements for pharmaceutical, chemical, food, and manufacturing industries.

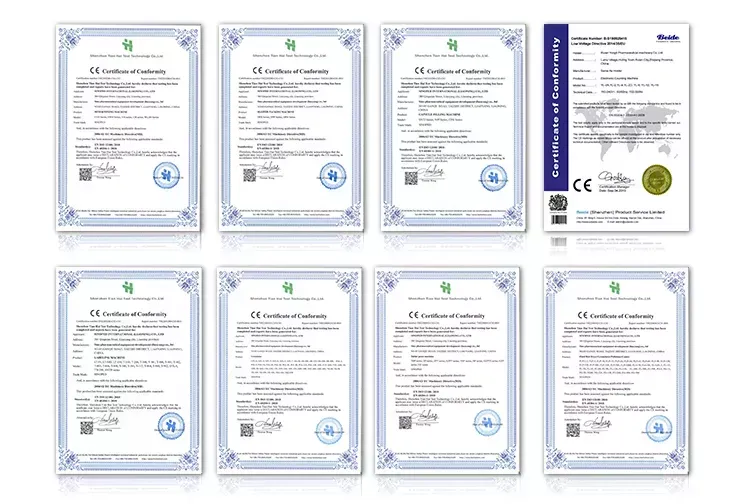

Depending on customer application and destination market, Sinoped powder mixer machines can be configured according to relevant manufacturing practices and safety requirements, including:
| Standard / Requirement | Application |
| GMP | Pharmaceutical and hygiene-sensitive production |
| ISO Quality Management Practices | Manufacturing quality control |
| CE Safety Requirements | European market equipment safety |
| ASME Related Requirements | Specific industrial projects |
| Food and Pharmaceutical Hygiene Requirements | Clean production environments |
Specific certification requirements can be customized according to project specifications.
Troubleshooting for Sinoped 2D Powder Mixer
Mixer Cannot Start
If the Sinoped powder mixer cannot start, check the power supply, motor protection system, electrical connections, and control components.
Abnormal Noise During Operation
Unusual noise may be related to reducer operation, mechanical looseness, or insufficient lubrication. Inspection of transmission components is recommended.
Poor Mixing Uniformity
Uneven mixing may result from incorrect loading volume, unsuitable mixing time, or material characteristics. Adjusting process parameters or selecting a suitable mixer model can improve performance.
Material Leakage
Material leakage may be caused by damaged seals or incorrect installation. Inspecting and replacing sealing components can solve the issue.
FAQ About Sinoped 2D Powder Mixer Machine
What is a Sinoped 2D Powder Mixer Machine?
A Sinoped 2D Powder Mixer Machine is industrial powder blending equipment that combines rotation and swinging movements to mix powders and granules efficiently.
What materials can Sinoped 2D powder mixers process?
Sinoped 2D powder mixers are suitable for pharmaceutical powders, chemical materials, food ingredients, cosmetic powders, pigments, pesticide powders, and metallurgical raw materials.
What is the mixing capacity of Sinoped SYH series mixers?
The Sinoped SYH series provides multiple models with working volumes ranging from 360L to 12000L, suitable for different industrial production requirements.
Can Sinoped customize powder mixer machines?
Yes. Sinoped provides customized 2D powder mixing solutions including capacity selection, stainless steel materials, vacuum feeding systems, and production line integration.
Is Sinoped 2D powder mixer suitable for pharmaceutical production?
Yes. The Sinoped 2D powder mixer is commonly used in pharmaceutical powder processing where cleaning performance, closed operation, and GMP-oriented manufacturing are required.
What is the difference between a 2D mixer and a 3D mixer?
A Sinoped 2D powder mixer mainly uses rotation and swinging motion, while a 3D mixer introduces additional three-dimensional movement. The suitable choice depends on material characteristics and production requirements.
Contact our International Sales Manager Brucr for professional support regarding pharmaceutical machinery, production equipment, and customized manufacturing solutions.
Sales Manager: Brucr
WhatsApp: +86 13322335577
Our team provides global customers with equipment consultation, technical assistance, and project support.
